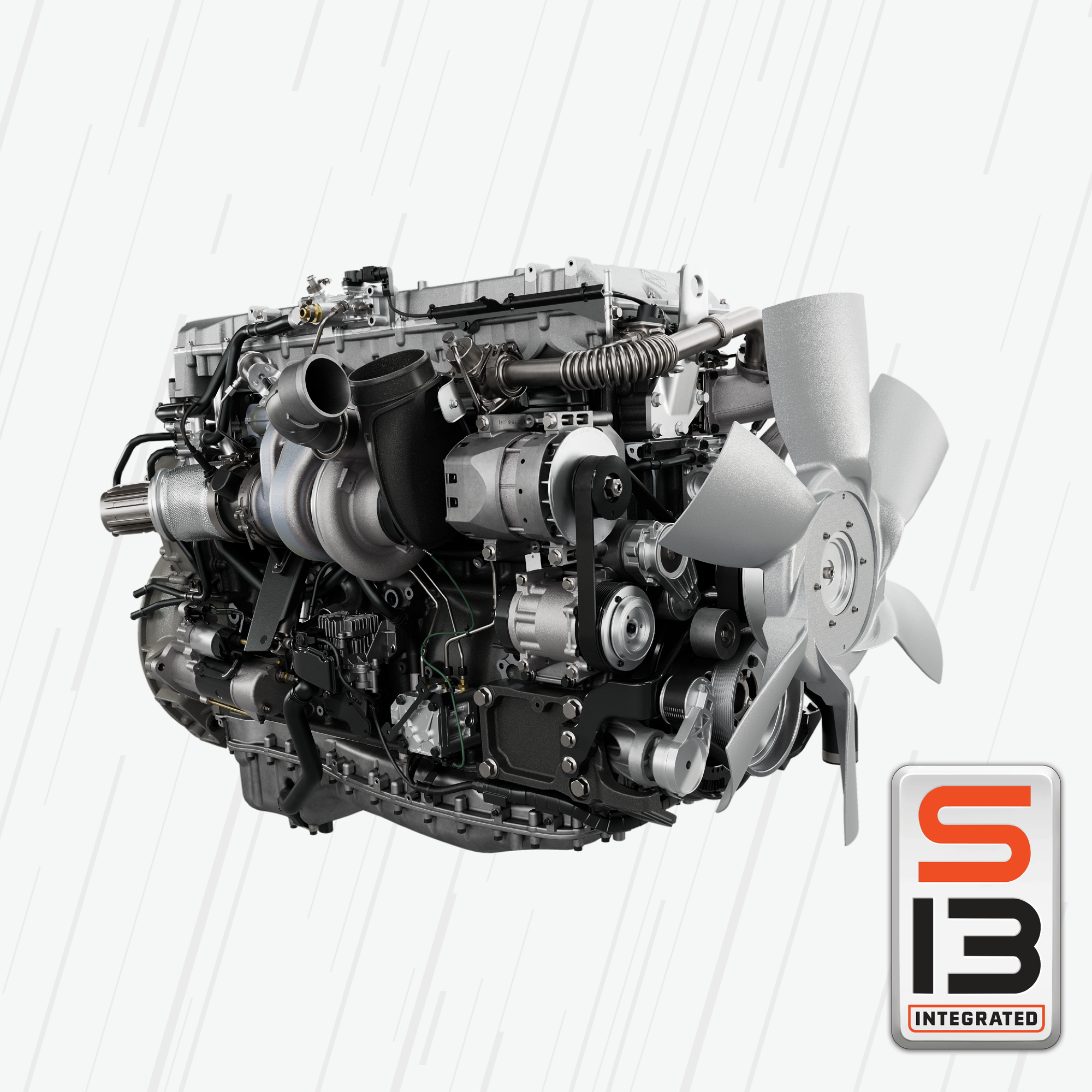

THE INTERNATIONAL® S13 INTEGRATED POWERTRAIN

The International® LT® with the S13 Integrated Powertrain leads the on-highway aero category by at least 5% in Fuel Economy*



Delivering superior operating economy.

The International® S13® Integrated Powertrain is our most advanced, fuel-efficient and streamlined powertrain, available in the LT®, RH™, HX®, and HV™ series.

Capable of up to 515 horsepower and 1,850 lb-ft of torque, the S13 Integrated consists of an engine, transmission and aftertreatment system designed together to maximize integration between systems while allowing each component to perform its function. The result is a new standard of efficiency, profitability and sustainability for our on-highway and off-highway customers.

Designed and developed from the ground up by a global dream team of engineers and proven over more than 4 million miles across a variety of terrains, the S13 Integrated is the last diesel powertrain we will ever produce—and, without question, our best.

Through extensive testing, a new cylinder and piston head design with maximum cooling properties was created. This new double overhead cam design directly equates to less fuel being consumed. But that’s not all. Thanks to the new Dual Stage Aftertreatment system, the heavy and expensive EGR cooler is no longer needed to reduce emissions. Its absence means a more reliable and robust engine that maximizes exhaust flow through the turbo to enhance performance and efficiency.

*The International® LT® with S13® Integrated Powertrain was tested head-to-head using TMC Type IV testing methodology against competitive on-highway aero models with comparable specifications: Freightliner Cascadia AeroX DD15, Kenworth T680 MX13, Volvo VNL760 D13. Testing proved the International LT with S13 Integrated Powertrain to be at least 5% more fuel efficient than these models. The International LT with S13 Integrated Powertrain uses up to 3.5% more DEF per gallon of fuel compared to comparable on-highway aerodynamic models.



HARD AT WORK - T14 TRANSMISSION

Providing stellar performance for those behind the wheel.

Keeping the driver comfortable, informed and empowered has been a mantra at International for decades as part of our DriverFirst™ Philosophy. The S13 Integrated Powertrain takes it a step further by offering a smooth and quiet operation with superior capabilities. In fact, full torque is available at only 900 rpm and the transmission’s wide overall gear ratio means optimal efficiency on a variety of terrain while still delivering low speed performance. And when descending, drivers can rely on the new compression release brake to deliver strong, secure braking power up to 470 hp.



DUAL STAGE AFTERTREATMENT SYSTEM

EASY SERVICEABILITY

The entire powertrain was designed to allow each individual component – engine, transmission, and aftertreatment – to focus on doing what it does best. Eliminating the EGR cooler is a prime example. Instead of trying to control NOx emissions inside the cylinder, the engine operates with zero EGR during regular operation, so it can focus on generating more power. Plus, no EGR during normal operations means 100% of the exhaust flow goes through the turbo allowing the use of a simple, more reliable fixed vane turbocharger.

NEXT-GEN AFTERTREATMENT

Because there’s no EGR during regular operation, NOx must be treated a different way. To do this, the engineers developed an all-new Dual Stage Aftertreatment design that injects a first dose of DEF just downstream of the turbo in the evaporator tube and a second dose inside the aftertreatment container. Since a cooled EGR has been eliminated from the combustion chamber, much less soot or particulate matter is generated. This allows for extended service intervals and eliminates the need for active regens. In fact, the cleaner combustion cycle has so much less soot the engineers were able to eliminate the need for a diesel oxidation catalyst (DOC) in the aftertreatment system.
Combined, the aftertreatment system provides a simple, reliable solution that’s easily serviceable.

EVERY DETAIL ENGINEERED TO PERFECTION

EFFICIENT COMBUSTION CYCLE

The S13® Integrated engineers paid special attention to the design of the combustion chamber and exhaust posts to enhance the performance and efficiency of the engine. Through extensive testing,  a new piston head with maximum cooling properties was created that when combined with a new double overhead cam design, directly equates to less fuel consumed.

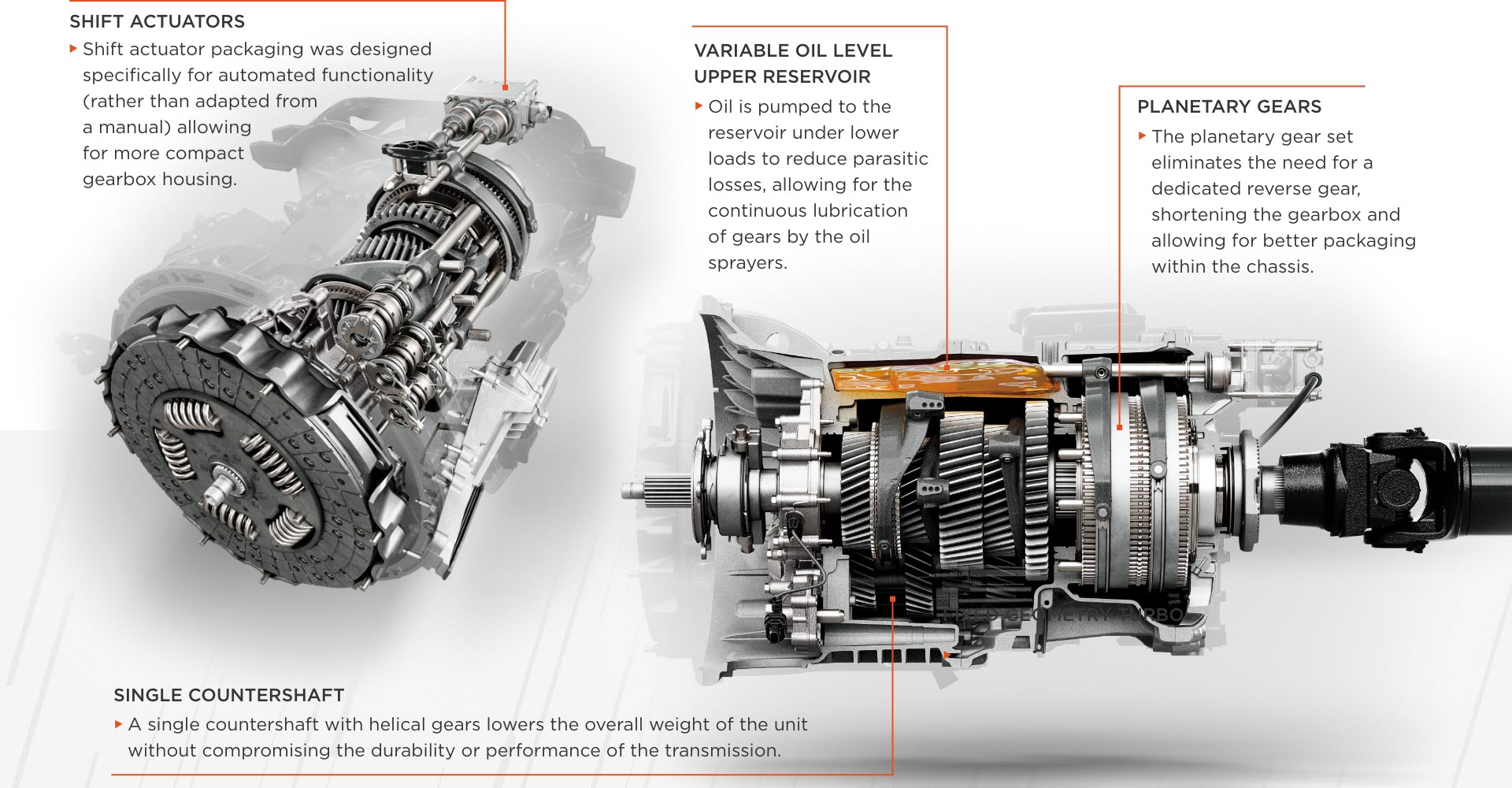

STREAMLINED TRANSMISSION

The S13® Integrated’s T14 Transmission features a revolutionary design. The reverse gearing is accomplished by using the planetary gears which helps reduce the overall weight and size of the unit, making room for chassis packaging and PTO.



INCREASED PAYLOAD AND POWER

Thanks to comprehensive engineering and choice of materials, the S13 Integrated Powertrain is remarkably light in weight. This helps trucks equipped with the S13 Integrated to achieve an outstanding payload capacity, along with improved fuel economy — attributes that can make a real difference to your bottom line. Plus, any International truck equipped with the S13 Integrated can be ordered with several different PTO options (including a dual option) installed directly at the factory and carrying the same warranty as the transmission.
